Thermoset molding is a manufacturing process used to shape and cure thermosetting plastics into durable, heat-resistant, and structurally stable components. Unlike thermoplastics, which can be repeatedly melted and reshaped, thermoset plastics undergo a chemical reaction during molding that makes their form permanent. Once cured, they cannot be remelted, making them ideal for applications requiring high strength, temperature resistance, and electrical insulation.
Thermoset plastics are commonly used in industries such as automotive, aerospace, electrical, and consumer goods due to their ability to withstand extreme conditions without deforming. These materials exhibit high mechanical strength, chemical resistance, and dimensional stability, making them perfect for high-performance applications like circuit breakers, automotive engine parts, and kitchen appliances.
The thermoset molding process involves shaping and curing thermosetting materials under heat and pressure. The process typically follows these steps:
Material Preparation – Thermoset resins, often in liquid, powder, or preformed pellet form, are prepared and measured. Some materials may require preheating or blending with fillers and reinforcements to enhance properties such as strength, durability, and heat resistance.

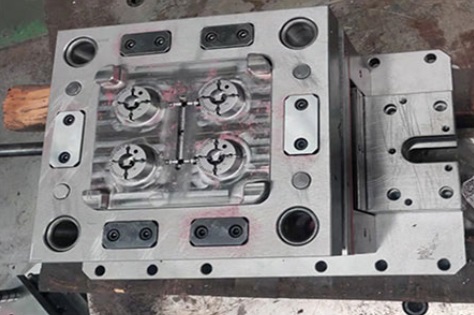

Mold Preparation – The mold is preheated to the appropriate temperature and coated with a release agent to prevent sticking. The mold must be precisely designed to accommodate the expansion and curing behavior of the material, ensuring accurate part dimensions and surface finish.
Material Loading – The thermoset material is placed into the mold cavity, either manually or through an automated system. In processes like transfer and injection molding, the material is introduced under controlled pressure to achieve uniform distribution and avoid air pockets.
Compression and Curing – The mold applies heat (typically between 250°F and 400°F) and pressure, triggering a chemical cross-linking reaction that hardens the material into its final form. This reaction permanently sets the plastic, making it highly durable and resistant to environmental stressors. The curing time varies depending on the type of thermoset resin used and the complexity of the part, ranging from a few seconds to several minutes.
Cooling and Ejection – After curing, the part is gradually cooled to prevent internal stresses and warping. The mold then opens, and the finished part is ejected using ejector pins or air blasts. Proper cooling is essential to maintain the structural integrity of the part.
Post-Processing and Inspection – Parts may undergo additional processes such as trimming, machining, painting, or surface finishing to achieve the desired specifications. Quality control measures, including dimensional inspections and strength testing, ensure that the final product meets industry standards and performance requirements.
While thermoset plastics offer excellent durability and resistance to heat and chemicals, they come with certain drawbacks:
Irreversible Curing – Once molded, thermoset plastics cannot be remelted or reshaped, making recycling difficult. Unlike thermoplastics, which can be reprocessed multiple times, thermosets must be ground down and repurposed into lower-grade applications. This limitation makes waste management a challenge for manufacturers.
Brittleness – Some thermoset materials, particularly those with high cross-linking density, can be brittle and prone to cracking under excessive stress or impact. This limits their use in applications requiring flexibility and toughness. While additives can improve toughness, thermosets generally remain less impact-resistant than thermoplastics.
Longer Processing Time – The curing process takes longer compared to thermoplastic molding, as the material must undergo a chemical reaction to harden. This can slow down production rates, making thermoset molding less suitable for extremely high-speed manufacturing operations. In industries where quick production cycles are crucial, thermoplastics may be preferred.
Higher Initial Costs – Tooling and processing thermosets often require specialized equipment, molds, and handling procedures, leading to higher upfront costs. Additionally, because defective parts cannot be reprocessed, scrap rates can be higher, increasing material costs.
Limited Repairability – Unlike thermoplastics, which can be reshaped or welded if damaged, thermoset components cannot be repaired easily. This means damaged parts often need complete replacement rather than simple fixes, making maintenance more expensive in certain applications.
